What is kube-state-metrics and how do I use it on GKE?

Running applications reliably on Google Kubernetes Engine (GKE) requires more than just deploying pods. You need continuous visibility into the health of your cluster: whether deployments have the right number of replicas running, whether pods are stuck in a Pending state, or whether nodes are under memory pressure. This is exactly what GKE kube state metrics is designed for.

kube-state-metrics (KSM) is a CNCF-aligned, open-source add-on that converts Kubernetes API object information into a structured stream of Prometheus-compatible metrics. Instead of measuring how much CPU a pod is consuming right now, it tells you what state that pod is in, what labels it carries, and how many times it has restarted. On GKE specifically, Google provides a managed integration that removes most of the operational overhead.

This guide explains what kube-state-metrics is, how it works, and how to configure and use it on GKE, whether through Google’s managed package or a self-managed Helm deployment.

What is kube-state-metrics?

kube-state-metrics is an add-on agent maintained under the official kubernetes/kube-state-metrics GitHub repository. It runs as a Deployment inside your cluster, watches the Kubernetes API server, and continuously generates metrics that describe the current state of every Kubernetes object in the cluster.

According to the official Kubernetes documentation, the purpose of kube-state-metrics is to expose metrics about the state of Kubernetes objects, not metrics about the Kubernetes components themselves. This distinction is important: KSM is concerned with whether a Deployment has the replicas it asked for, not with how much memory the kube-apiserver is using.

KSM holds a full in-memory snapshot of the cluster state and regenerates metrics on every scrape. The metrics are served at the /metrics endpoint on port 8080. Because they are generated directly from Kubernetes API objects without heuristic modification, they are considered a reliable source of ground truth for automation and alerting.

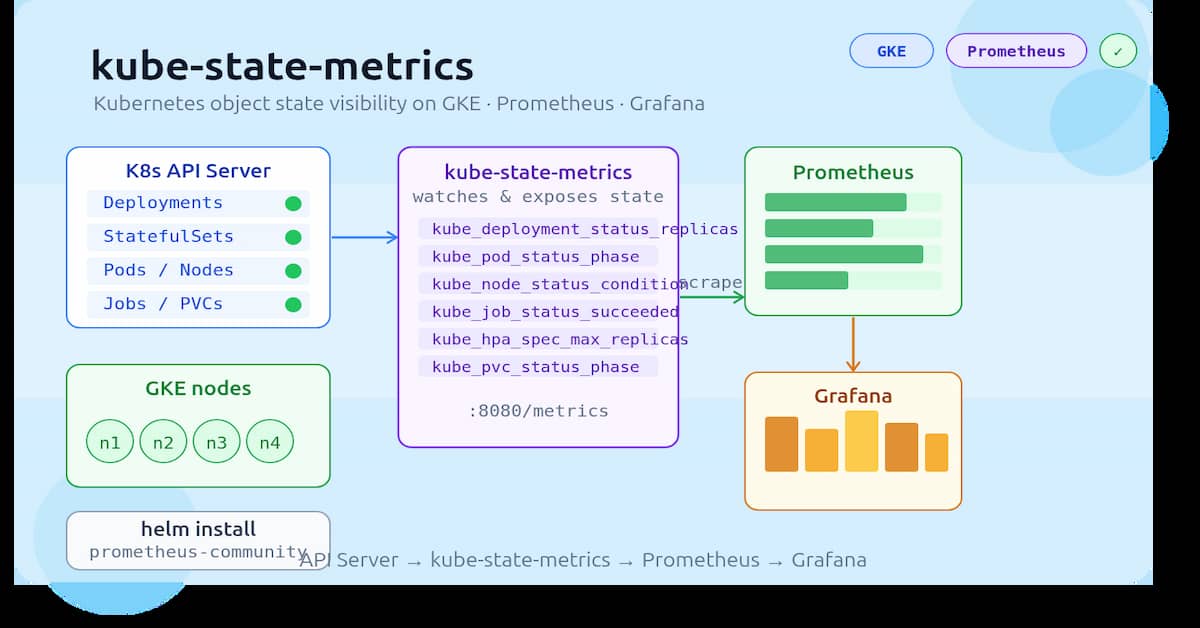

How kube-state-metrics Collects Data

KSM uses the standard Kubernetes Go client to watch resources via the Kubernetes API server. It maintains a local cache (called an informer) for each tracked resource type. When an object changes, the informer triggers an update, and the next metrics scrape reflects the new state. This watch-and-cache model is efficient: KSM does not poll the API server on every scrape request.

What Kubernetes Objects Does It Track?

As of recent versions, kube-state-metrics tracks more than 30 Kubernetes object types, including:

• Pods and Pod conditions
• Deployments, ReplicaSets, and ReplicationControllers
• StatefulSets and DaemonSets
• Jobs and CronJobs
• Nodes and Node conditions
• PersistentVolumes and PersistentVolumeClaims
• Services and Endpoints
• Namespaces and ResourceQuotas
• HorizontalPodAutoscalers (HPA)
• ConfigMaps, Secrets, and LimitRanges

kube-state-metrics vs. Metrics Server: Key Differences

A common point of confusion is the difference between kube-state-metrics and Metrics Server. They serve fundamentally different purposes and are complementary rather than competing.

In practice, a well-instrumented GKE cluster uses both. kube-state-metrics tells you whether your workloads are healthy at the Kubernetes object level. Metrics Server (or a Prometheus node exporter) tells you whether the nodes and pods have the resources they need.

kube-state-metrics on GKE: The Managed Package

GKE offers a built-in managed integration for kube-state-metrics through its Workloads State package. According to Google Cloud documentation, this package is part of the Google Cloud Managed Service for Prometheus and can be enabled directly from the GKE console or via the gcloud CLI.

When the managed package is enabled, GKE automatically deploys a kube-state-metrics instance, configures scraping through Google Cloud Managed Service for Prometheus, and routes the metrics to Google Cloud Monitoring. You can then query them using PromQL in the Metrics Explorer or build dashboards in Cloud Monitoring.

Enabling the Managed Workloads State Package via Console

1. Open the Google Cloud Console and navigate to Kubernetes Engine > Clusters.
2. Click the name of the cluster you want to configure.
3. Select the Observability tab.
4. Locate the Workloads State package.
5. Click Enable package.
6. Metrics will begin flowing to Cloud Monitoring within a few minutes.

Enabling via gcloud CLI

You can also enable Managed Service for Prometheus (which includes kube-state-metrics collection) when creating or updating a GKE cluster:

# Enable when creating a new clustergcloud container clusters create my-cluster \  --zone us-central1-a \  --enable-managed-prometheus
# Enable on an existing clustergcloud container clusters update my-cluster \  --zone us-central1-a \  --enable-managed-prometheus

# Enable when creating a new clustergcloud container clusters create my-cluster \  --zone us-central1-a \  --enable-managed-prometheus
# Enable on an existing clustergcloud container clusters update my-cluster \  --zone us-central1-a \  --enable-managed-prometheus

Installing kube-state-metrics on GKE via Helm

If you need custom configuration, want to use a different Prometheus stack, or prefer to manage the lifecycle yourself, you can install kube-state-metrics using the official Helm chart from the prometheus-community repository.

Prerequisites

• A GKE cluster (Standard or Autopilot) with kubectl configured
• Helm 3 installed on your local machine
• A running Prometheus instance (or the kube-prometheus-stack Helm chart)

Step 1: Add the Prometheus Community Helm Repository

helm repo add prometheus-community \  https://prometheus-community.github.io/helm-chartshelm repo update

helm repo add prometheus-community \  https://prometheus-community.github.io/helm-chartshelm repo update

Step 2: Install kube-state-metrics

helm install kube-state-metrics \  prometheus-community/kube-state-metrics \  --namespace monitoring \  --create-namespace

helm install kube-state-metrics \  prometheus-community/kube-state-metrics \  --namespace monitoring \  --create-namespace

This deploys kube-state-metrics as a Deployment in the monitoring namespace and creates a ClusterRole that gives it read access to all the Kubernetes API objects it needs to watch.

Step 3: Verify the Deployment

kubectl get pods -n monitoring# You should see a pod named kube-state-metrics-* in Running state
kubectl get svc -n monitoring# The Service exposes port 8080 for metrics scraping

kubectl get pods -n monitoring# You should see a pod named kube-state-metrics-* in Running state
kubectl get svc -n monitoring# The Service exposes port 8080 for metrics scraping

Step 4: Access the Metrics Endpoint

kubectl port-forward svc/kube-state-metrics 8080:8080 -n monitoring# Then in another terminal:curl http://localhost:8080/metrics | head -50

kubectl port-forward svc/kube-state-metrics 8080:8080 -n monitoring# Then in another terminal:curl http://localhost:8080/metrics | head -50

Step 5: Configure Prometheus to Scrape kube-state-metrics

If you are using the Prometheus Operator, a ServiceMonitor resource is the recommended approach:

apiVersion: monitoring.coreos.com/v1kind: ServiceMonitormetadata:  name: kube-state-metrics  namespace: monitoringspec:  selector:    matchLabels:      app.kubernetes.io/name: kube-state-metrics  endpoints:  - port: http    interval: 30s

apiVersion: monitoring.coreos.com/v1kind: ServiceMonitormetadata:  name: kube-state-metrics  namespace: monitoringspec:  selector:    matchLabels:      app.kubernetes.io/name: kube-state-metrics  endpoints:  - port: http    interval: 30s

If you are using a standalone Prometheus deployment with a static configuration file, add a scrape job:

scrape_configs:  - job_name: kube-state-metrics    static_configs:      - targets: ['kube-state-metrics.monitoring.svc.cluster.local:8080']

scrape_configs:  - job_name: kube-state-metrics    static_configs:      - targets: ['kube-state-metrics.monitoring.svc.cluster.local:8080']

Key kube-state-metrics Metrics to Monitor on GKE

kube-state-metrics exposes hundreds of metrics. The following are the most actionable for day-to-day GKE operations.

Pod Health

Deployment and Replica Health

Node Health

HorizontalPodAutoscaler (HPA)

Useful PromQL Queries for GKE kube-state-metrics

Once kube-state-metrics is scraped by Prometheus, you can use PromQL to build dashboards and alerts. The following queries are practical starting points.

Count Pods by Phase

count by (phase) (kube_pod_status_phase{namespace="production"})

count by (phase) (kube_pod_status_phase{namespace="production"})

Detect Deployments with Unavailable Replicas

kube_deployment_status_replicas_unavailable > 0

kube_deployment_status_replicas_unavailable > 0

Find Pods in CrashLoopBackOff

kube_pod_container_status_waiting_reason{reason="CrashLoopBackOff"} == 1

kube_pod_container_status_waiting_reason{reason="CrashLoopBackOff"} == 1

Alert on Nodes with Memory Pressure

kube_node_status_condition{condition="MemoryPressure",status="true"} == 1

kube_node_status_condition{condition="MemoryPressure",status="true"} == 1

Check HPA Scaling at Maximum

kube_hpa_status_current_replicas == kube_hpa_spec_max_replicas

kube_hpa_status_current_replicas == kube_hpa_spec_max_replicas

Detect OOMKilled Containers in the Last Hour

sum by (pod, container, namespace) (  changes(kube_pod_container_status_restarts_total[1h])) > 0and on (pod, container, namespace)kube_pod_container_status_last_terminated_reason{reason="OOMKilled"} == 1

sum by (pod, container, namespace) (  changes(kube_pod_container_status_restarts_total[1h])) > 0and on (pod, container, namespace)kube_pod_container_status_last_terminated_reason{reason="OOMKilled"} == 1

kube-state-metrics on GKE Autopilot vs. Standard

GKE comes in two modes: Autopilot and Standard. The behavior of kube-state-metrics differs between them.

GKE Standard

In Standard mode, you have full control over the cluster nodes. You can install kube-state-metrics via Helm as described above, configure it freely, and manage its resource requests and limits yourself. You can also use the managed Workloads State package if you prefer.

GKE Autopilot

In Autopilot mode, Google manages the nodes, and you cannot run privileged workloads or control node-level configuration. kube-state-metrics itself does not require privileged access and can run in Autopilot without special configuration. However, the most straightforward approach in Autopilot is to use the managed Workloads State package, since it handles configuration that would otherwise require cluster-level access.

If you install kube-state-metrics via Helm on Autopilot, make sure that the resource requests and limits in your values.yaml are appropriate, since Autopilot enforces minimum resource requirements per pod.

Best Practices for Using kube-state-metrics on GKE

• Use the managed package when possible. On GKE, the Workloads State managed package reduces operational overhead and ensures the metrics feed correctly into Cloud Monitoring.
• Limit metric collection to what you need. kube-state-metrics supports allowlists and denylists for metric names and resource types. Reducing the number of metrics collected lowers memory usage and scrape latency.
• Set resource requests and limits. kube-state-metrics memory usage grows with cluster size. For large GKE clusters with many objects, set appropriate memory limits and monitor for OOMKilled restarts.
• Use consistent labels. kube-state-metrics exposes all Kubernetes labels as metric labels. Keeping your label taxonomy clean ensures that dashboards and alerts remain readable.
• Do not use kube-state-metrics for autoscaling decisions. It is not designed for HPA use cases. Use Metrics Server or custom metrics adapters for autoscaling.
• Store metrics with adequate retention. For trend analysis and capacity planning, configure your Prometheus instance or Cloud Monitoring to retain kube-state-metrics data for at least 30 days.
• Validate with the official list of stable metrics. Some kube-state-metrics metrics are experimental and subject to change. Prefer stable metrics in long-lived alert rules.

Troubleshooting Common Issues

kube-state-metrics Pod is Not Running

Check the pod logs for RBAC errors. kube-state-metrics requires a ClusterRole with read access to cluster resources. If the ClusterRoleBinding is missing or incorrect, the pod will fail to start. Run:

kubectl describe pod <kube-state-metrics-pod-name> -n monitoringkubectl logs <kube-state-metrics-pod-name> -n monitoring

kubectl describe pod <kube-state-metrics-pod-name> -n monitoringkubectl logs <kube-state-metrics-pod-name> -n monitoring

Metrics Are Not Appearing in Prometheus

Verify that the ServiceMonitor or scrape config is correctly pointing to the kube-state-metrics Service. Check that the label selectors in the ServiceMonitor match the labels on the Service. Also confirm that Prometheus has the RBAC permissions to discover services in the monitoring namespace.

High Memory Usage

In clusters with thousands of pods or large numbers of secrets and configmaps, kube-state-metrics memory usage can become significant. Use the resources.requests and resource.limits values in the Helm chart to set boundaries, and consider using the collectors field to disable resource types you do not need.

# Example: Collect only pods, deployments, and nodeshelm install kube-state-metrics \  prometheus-community/kube-state-metrics \  --namespace monitoring \  --set collectors='{pods,deployments,nodes}'

# Example: Collect only pods, deployments, and nodeshelm install kube-state-metrics \  prometheus-community/kube-state-metrics \  --namespace monitoring \  --set collectors='{pods,deployments,nodes}'

Metrics Differ from kubectl Output

kube-state-metrics generates metrics directly from the Kubernetes API objects, without the heuristics that kubectl applies to format its output. For example, kubectl get pods may show a pod as Running while kube-state-metrics shows it in a non-ready condition. In such cases, kube-state-metrics represents the authoritative, machine-readable state.
